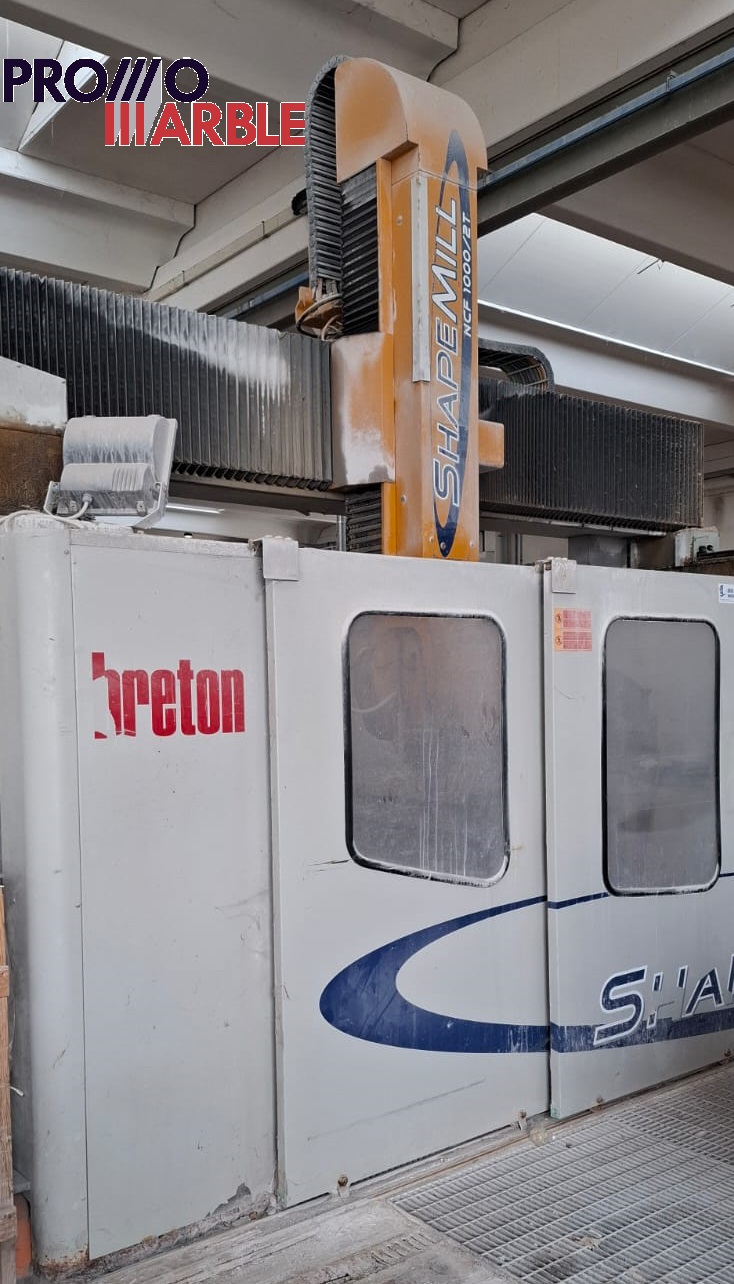

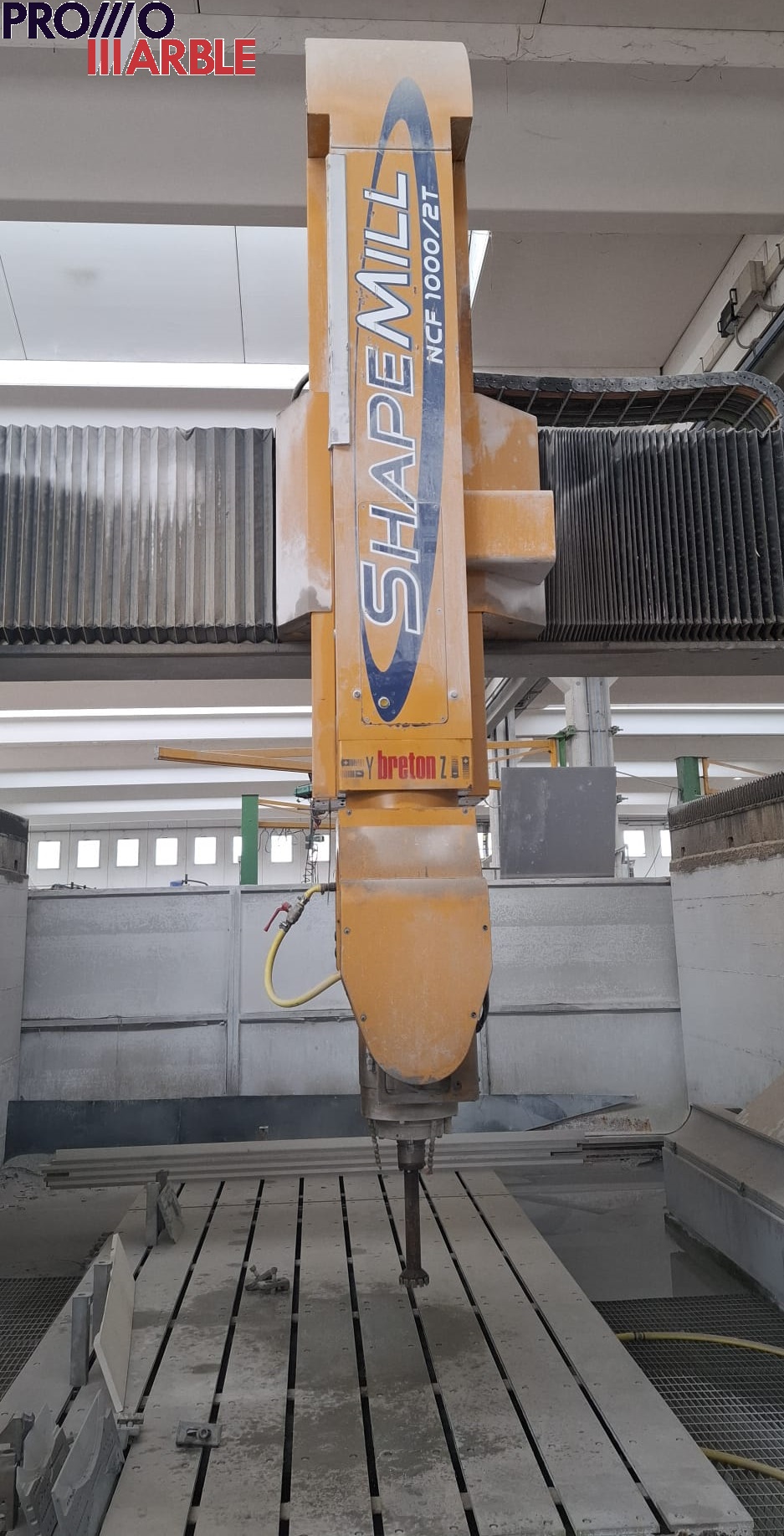

Bridge saw Breton 5 axis Shapemill NCF1000

Bridge saw Breton 5 axis Shapemill NCF1000/2T

Year 2006

Good condition and fully working

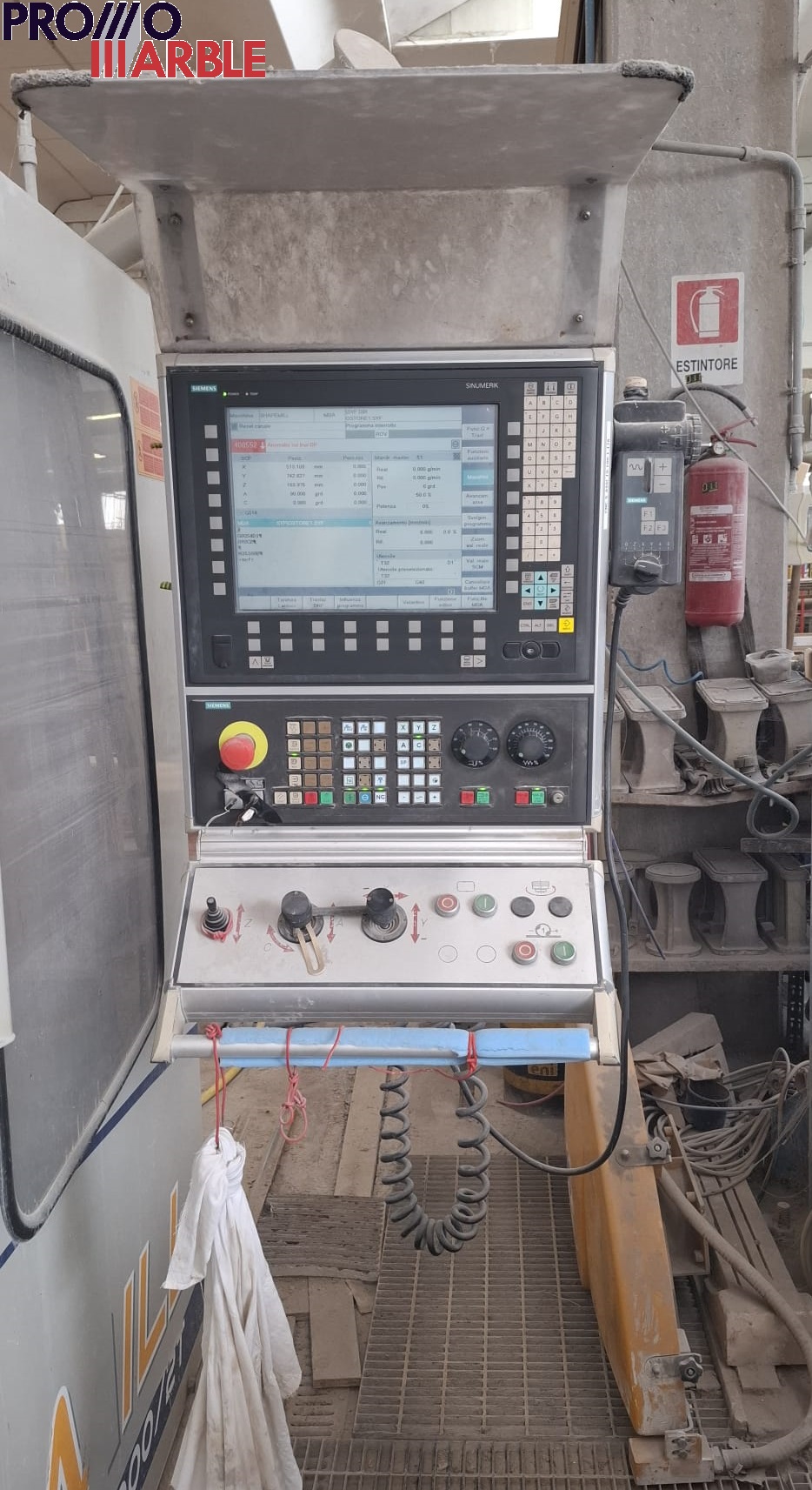

Consolle touch screen 15 pollici

Stroke axis X 3000 mm

Stroke axis Y 5500 mm

Stroke axis Z 1000 mm

Rotation axis A -20° +90°

Rotation axis C continuous

Max cutting disc diameter 1000 mm

Max. diameter of shaping tool 140 mm

Max length of shaping tool 400 mm

Tool holder attachment HSK B80

Spindle power 31 Kw

Max spindle rotation speed 6000 rpm

Laser probe for checking the profile, diameter and length of the tool

Storage capacity 18 tools

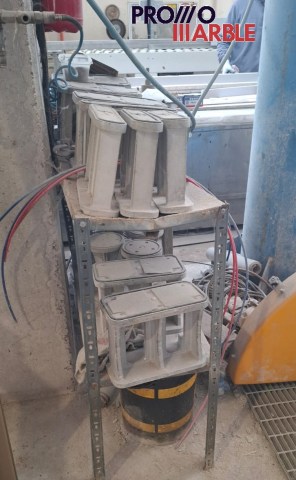

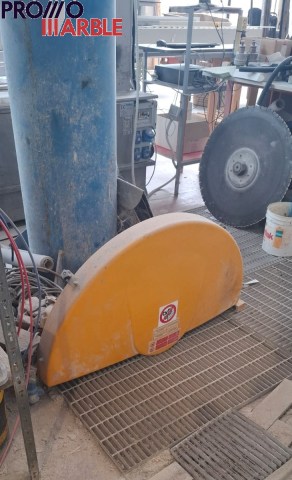

Including tool holder cones and extensions, disc covers, bench suction cup set
